Two-component self moving raised line marking machine is a professional equipment for marking various raised lines with two-component oscillating paint. The equipment adopts an efficient and energy-saving drive system to reduce labor intensity.

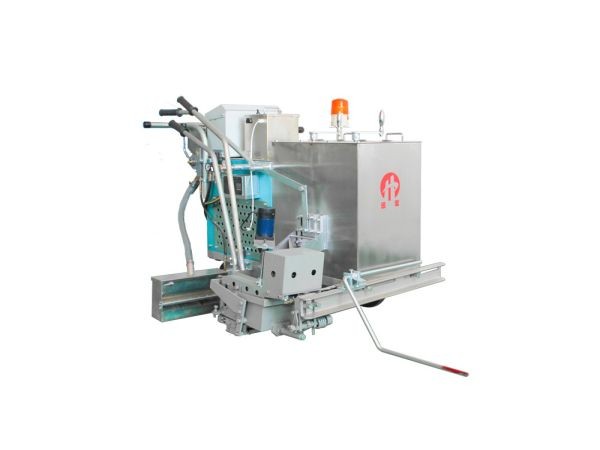

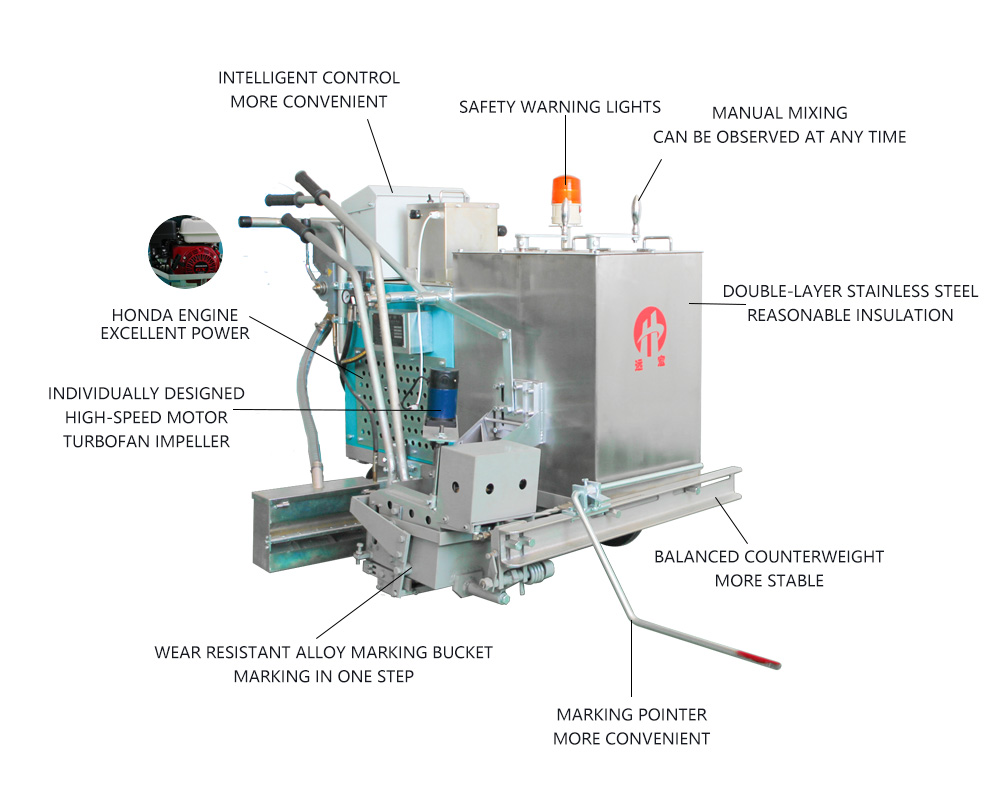

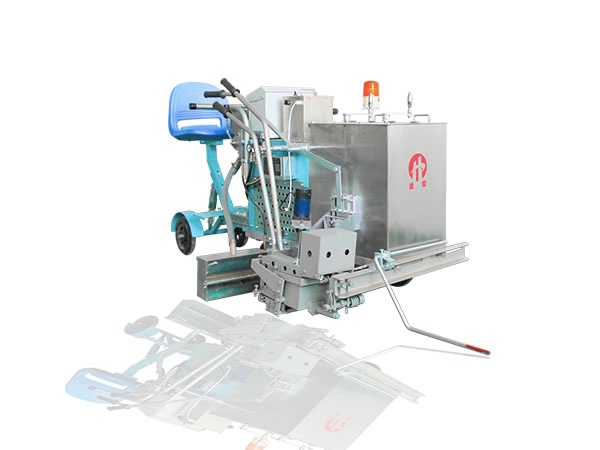

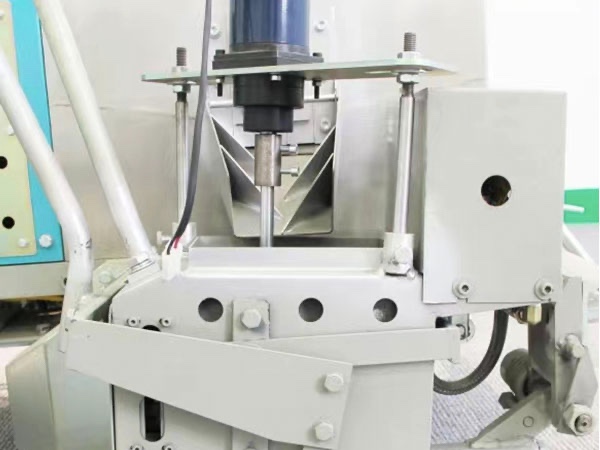

WINFAR-TQ Two-component self moving raised line marking machine is a professional equipment for marking various raised lines with two-component oscillating paint. The equipment adopts an efficient and energy-saving drive system to reduce labor intensity. It can be equipped with an oscillating bucket to mark oscillating lines, and can also be equipped with a throwing bucket or a scraping bucket to realize two-component throwing and scraping construction. It is easy to switch and has three uses in one machine. It is a multi-purpose two-component equipment.
TWO-COMPONENT SELF MOVING RAISED LINE MARKING MACHINE | |
| MODEL | WINFAR-TQ |

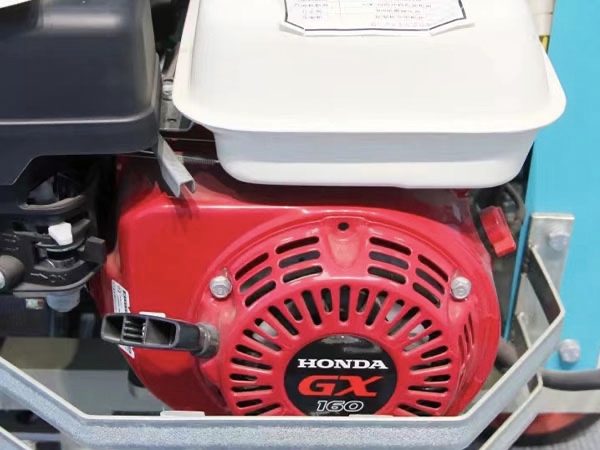

| POWER SOURCE | Honda 5.5HP gasoline engine |
| DRIVING METHOD | Automatic hydraulic continuously variable transmission |
| WALKING SPEED | 0-15km/H |
| BRAKING SYSTEM | Five speed dual wheel braking |
| LINE TYPE SELECTION | Oscillation line, throwing line, scraping line (optional) |

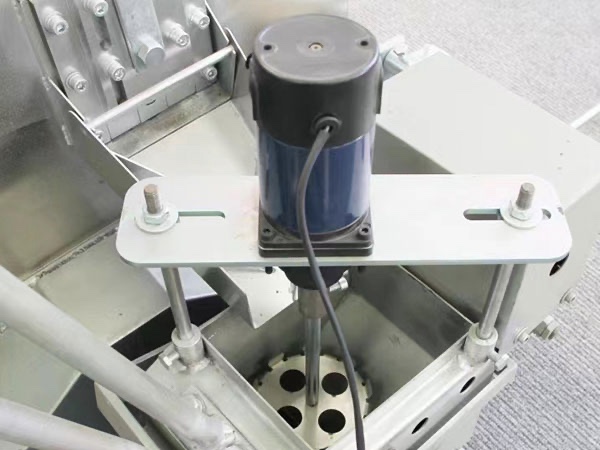

| MIXING MOTOR | 24V |

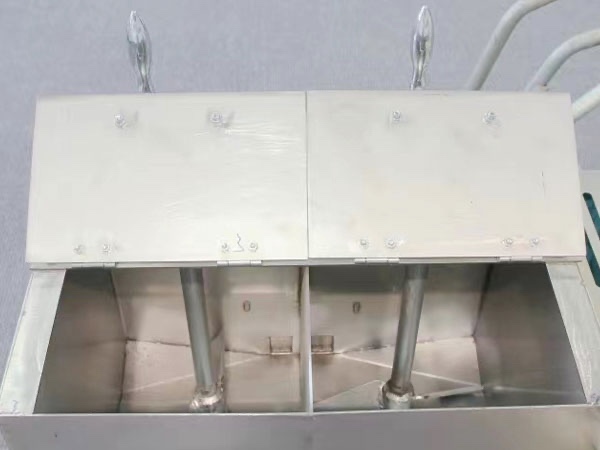

| BARREL CAPACITY | A barrel (60kg) and B barrel (60kg) |
| BEAD BOX CAPACITY | 15kg |
| BULGE HEIGHT | 0-10mm |
| BASELINE THICKNESS | 1-3mm |
| RUBBER WHEEL MATERIAL | Steel core natural rubber wheel |
| HEATING METHOD | liquefied gas |
| MARKING WIDTH | 4/5/6/8/10/12/15/18/20/25/30/40/45/50/60cm (optional) |
| NET WEIGHT OF EQUIPMENT | 280kg |
| EXTERNAL DIMENSIONS | 1200 * 1000 * 1000mm |
