This machine can be manually pushed or electrically driven for walking. The mixing system is equipped with a silent motor and the latest design of fixed brackets and mixing paddles, ensuring sufficient mixing and easy disassembly and cleaning.

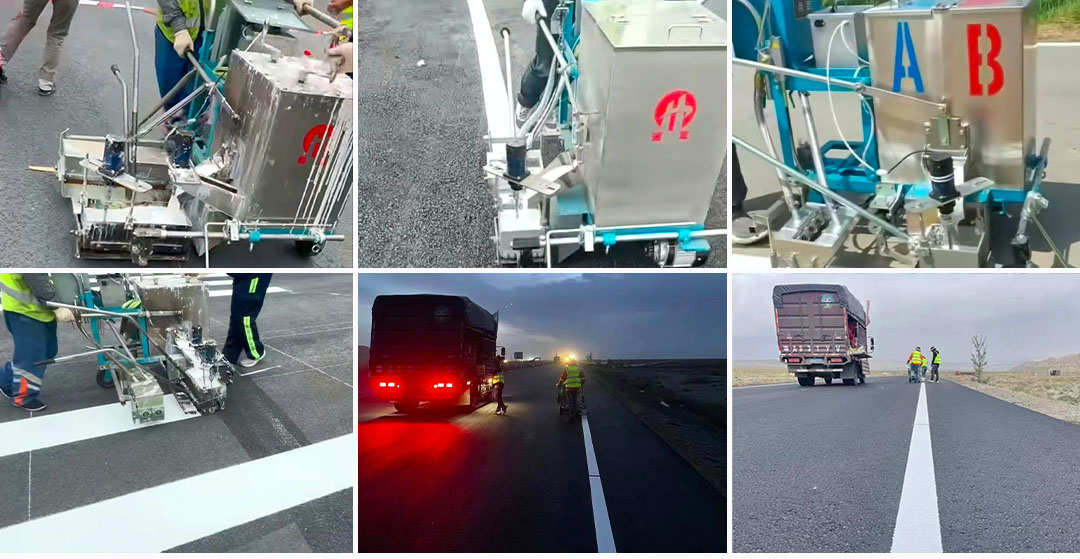

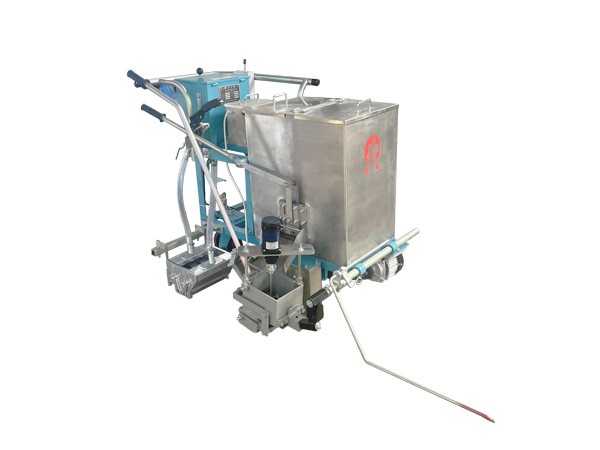

The two-component scraping and marking machine is a specialized equipment for two-component scraping and coating construction.This machine can be manually pushed or electrically driven for walking. The mixing system is equipped with a silent motor and the latest design of fixed brackets and mixing paddles, ensuring sufficient mixing and easy disassembly and cleaning.
TWO COMPONENT SCRAPING AND MARKING MACHINE | |
| MODEL | YHGT-S/D |
| POWER SOURCE | Dual wheel synchronous electric drive |
| DRIVING METHOD | Integrated gear shift controller |
| WALKING SPEED | 0-25km/H |

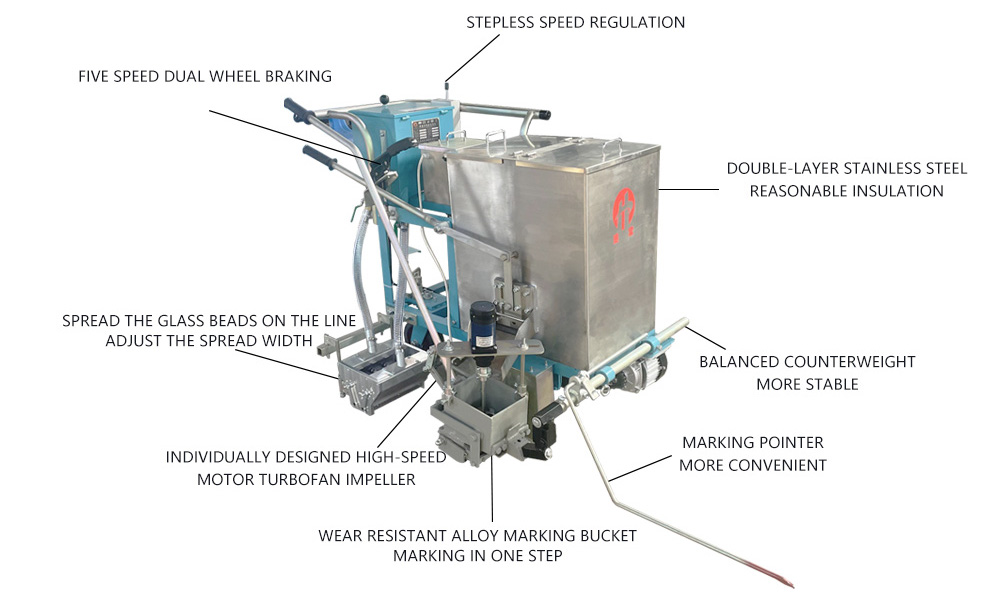

| BRAKING SYSTEM | Five speed dual wheel braking |
| DRIVE MOTOR | 48V |
| MIXING MOTOR | 24V |
| BARREL CAPACITY | A barrel (50kg) B barrel (50kg) |
| BEAD BOX CAPACITY | 15Kg |
| BEAD CASTING METHOD | Self falling adjustable spreader |
| MARKING THICKNESS | 1.0mm-4.0mm |
| RUBBER WHEEL MATERIAL | Steel core natural rubber wheel |
| HEATING METHOD | Liquefied gas |
| MARKING WIDTH | 4-50cm (optional) |
| NET WEIGHT OF EQUIPMENT | Electric type (150kg) |
| EXTERNAL DIMENSIONS | 1200 * 900 * 1100mm |
